UV Fused Silica Windows - VIS AR 350-700nm

Optical Windows

Have custom requirements?
Contact Us

Telephone: +44 (0) 1268 728077

Stock Specification

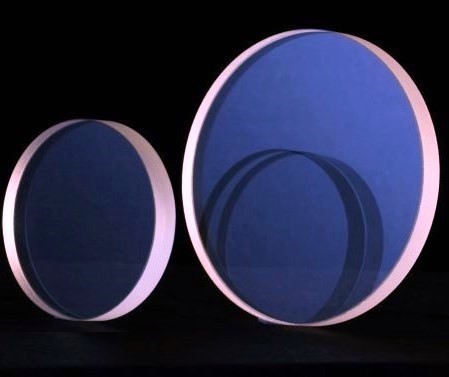

UV FUSED SILCA WINDOWS AR coated for the 350~700nm visible range

For UNCOATED UV FUSED SILICA WINDOWS please click HERE

For UV 250~400 COATED FUSED SILICA WINDOWS please click HERE

For NIR 600~1100 COATED FUSED SILICA WINDOWS please click HERE

For SWIR 900~1700 COATED FUSED SILICA WINDOWS please click HERE

UV grade fused silica is widely used for applications that benefit from increased transmission deeper into the UV than BK7. UV fused silica also offers a lower refractive index for a given wavelength, better homogeneity, and lower thermal expansion than BK7.

MATERIAL	UV FUSED SILICA	DIMENSION	+0.0 / - 0.1mm
FLATNESS	λ/4 @ 633nm	THICKNESS	± 0.2mm
SURFACE QUALITY	60/40	PARALLELISM	< 30 ARC SECONDS
BEVEL	0.2 x 45°	COATING	VISIBLE AR 350~700nm

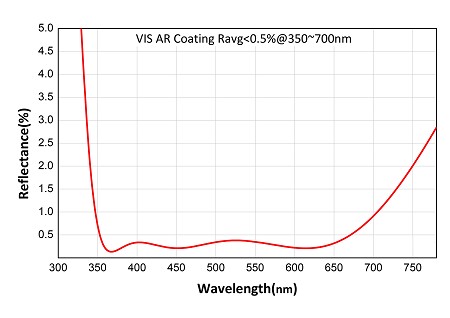

These windows are AR coated for the VIS wavelength range.

Part No.	Data Sheet	Description	Dimensions (MM)	Thickness (MM)	Unit Price	QTY	BASKET	QUOTE
WFS-005-002-VIS		AR COATED R<0.5% @ 350~700NM	5.0 DIAMETER	2.0	£17.50		BUY	ADD TO QUOTE
WFS-010-002-VIS		AR COATED R<0.5% @ 350~700NM	10.0 DIAMETER	2.0	£17.50		BUY	ADD TO QUOTE
WFS-012-002-VIS		AR COATED R<0.5% @ 350~700NM	12.5 DIAMETER	2.0	£17.50		BUY	ADD TO QUOTE
WFS-0127-002-VIS		AR COATED R<0.5% @ 350~700NM	12.7 DIAMETER	2.0	£17.50		BUY	ADD TO QUOTE
WFS-020-002-VIS		AR COATED R<0.5% @ 350~700NM	20.0 DIAMETER	2.0	£21.00		BUY	ADD TO QUOTE
WFS-025-002-VIS		AR COATED R<0.5% @ 350~700NM	25.0 DIAMETER	2.0	£36.50		BUY	ADD TO QUOTE
WFS-0254-002-VIS		AR COATED R<0.5% @ 350~700NM	25.4 DIAMETER	2.0	£36.50		BUY	ADD TO QUOTE
WFS-030-003-VIS		AR COATED R<0.5% @ 350~700NM	30.0 DIAMETER	3.0	£48.00		BUY	ADD TO QUOTE
WFS-038-004-VIS		AR COATED R<0.5% @ 350~700NM	38.1 DIAMETER	4.0	£68.50		BUY	ADD TO QUOTE
WFS-050-004-VIS		AR COATED R<0.5% @ 350~700NM	50.0 DIAMETER	4.0	£98.50		BUY	ADD TO QUOTE
WFS-0508-004-VIS		AR COATED R<0.5% @ 350~700NM	50.8 DIAMETER	4.0	£98.50		BUY	ADD TO QUOTE

PART NO.	QTY	BASKET	QUOTE	Description	Dimensions (MM)	Thickness (MM)	Unit Price	Data Sheet
WFS-005-002-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	5.0 DIAMETER	2.0	£17.50
WFS-010-002-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	10.0 DIAMETER	2.0	£17.50
WFS-012-002-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	12.5 DIAMETER	2.0	£17.50
WFS-0127-002-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	12.7 DIAMETER	2.0	£17.50
WFS-020-002-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	20.0 DIAMETER	2.0	£21.00
WFS-025-002-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	25.0 DIAMETER	2.0	£36.50
WFS-0254-002-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	25.4 DIAMETER	2.0	£36.50
WFS-030-003-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	30.0 DIAMETER	3.0	£48.00
WFS-038-004-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	38.1 DIAMETER	4.0	£68.50
WFS-050-004-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	50.0 DIAMETER	4.0	£98.50
WFS-0508-004-VIS		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 350~700NM	50.8 DIAMETER	4.0	£98.50

UV Fused Silica Windows - VIS AR 350-700nm

UV FUSED SILCA WINDOWS AR coated for the 350~700nm visible range

MATERIAL

UV FUSED SILICA

DIMENSION

+0.0 / - 0.1mm

FLATNESS

λ/4 @ 633nm

THICKNESS

± 0.2mm

SURFACE QUALITY

60/40

PARALLELISM

< 30 ARC SECONDS

BEVEL

0.2 x 45°

COATING

VISIBLE AR 350~700nm
