Dove Prisms

Dove Prisms

Optical Prisms
Have custom requirements?
Contact Us

Stock Specification

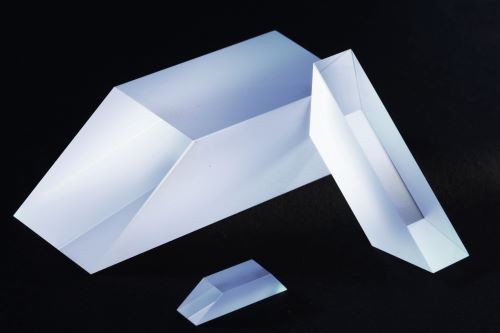

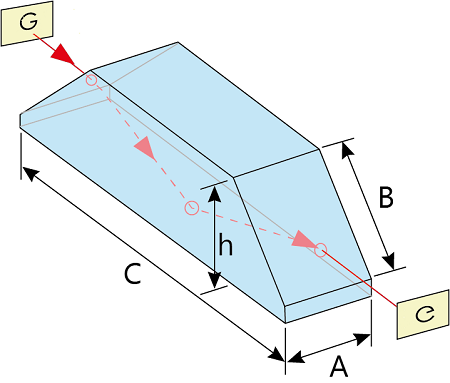

Dove Prisms can be used as image rotators.  As light passes through the prism the image is rotated by 180°

MATERIAL N-BK7 GRADE A OPTICAL GLASS   DIMENSIONS +0.0/-0.2mm
FLATNESS λ/4 @ 632.8nm   SURFACE QUALITY 60/40
ANGLE TOLERANCE ± 3 ARC minutes   COATING SEE BELOW



PART NO. QTY BASKET QUOTE Description Dimensions (MM)Specification Unit Price Data
Sheet
P14-0055MM DOVE PRISMA=5 X B=7.07 X C=21.1 X H=5UNCOATED£75.00

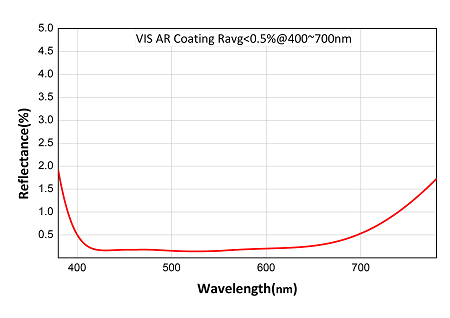

P14-005-VIS5MM DOVE PRISMA=5 X B=7.07 X C=21.1 X H=5VISIBLE AR COATED R<0.5% 400~700NM£92.00
P14-01010MM DOVE PRISMA=10 X B=14.14 X C=42.3 X =10UNCOATED£68.00
P14-010-VIS10MM DOVE PRISMA=10 X B=14.14 X C=42.3 X =10VISIBLE AR COATED R<0.5% 400~700NM£83.50
P14-01515MM DOVE PRISMA=15 X B=21.21 X C=63.4 X =15UNCOATED£68.00
P14-015-VIS15MM DOVE PRISMA=15 X B=21.21 X C=63.4 X =15VISIBLE AR COATED R<0.5% 400~700NM£83.50
P14-02020MM DOVE PRISMA=20 X B=28.28 X C=80.0 X =20UNCOATED£104.00
P14-020-VIS20MM DOVE PRISMA=20 X B=28.28 X C=80.0 X =20VISIBLE AR COATED R<0.5% 400~700NM£119.50
