Positive Achromatic Lenses -VIS

Positive Achromatic Lenses -VIS

Optical Lenses
Have custom requirements?
Contact Us

Stock Specification

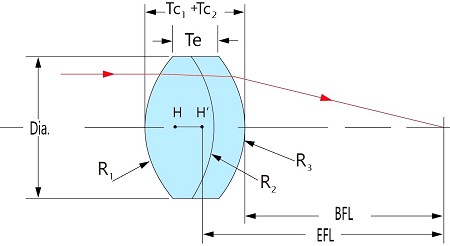

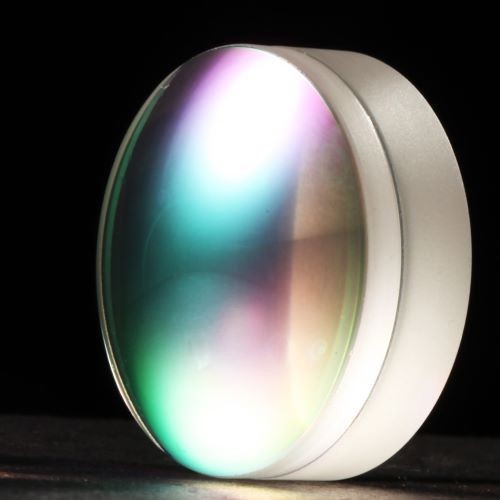

Achromatic doublet lenses are focusing components to reduce chromatic aberrations from broadband light sources. Unlike singlet lenses, achromatic lenses have a constant focal length independent of aperture and operating wavelengths and have a superior off-axis performance. Our achromatic lenses are designed to minimize spherical aberration and coma when operating at infinite conjugate ratio, producing smaller focused spot sizes. These achromatic lenses are supplied with anti-reflection coatingS for the Visible wavelengths 400-700nm.



THICKNESS TOLERANCE ± 0.2mm   DIAMETER TOLERANCE + 0.0 / - 0.1mm
IRREGULARITY λ/4 @ 632.8nm   SURFACE QUALITY 60/40
CENTRATION 3 ~ 5'
   FOCAL LENGTH ± 2%



PART NO. QTY BASKET QUOTE Description Diameter (MM)Focal LengthThickness (MM) Unit Price Data
Sheet
L50-003-004-VISAR COATED R<0.5% @ 400~700NM3.04.02.90£55.00
L50-004-005-VISAR COATED R<0.5% @ 400~700NM4.05.03.10£50.00
L50-004-006-VISAR COATED R<0.5% @ 400~700NM4.06.03.60£50.00
L50-005-007-VISAR COATED R<0.5% @ 400~700NM5.07.54.50£48.00
L50-005-010-VISAR COATED R<0.5% @ 400~700NM5.010.04.40£43.00
L50-005-015-VISAR COATED R<0.5% @ 400~700NM5.015.04.80£43.00
L50-006-010-VISAR COATED R<0.5% @ 400~700NM6.010.04.00£43.00
L50-0063-008-VISAR COATED R<0.5% @ 400~700NM6.38.05.70£41.00
L50-0063-010-VISAR COATED R<0.5% @ 400~700NM6.310.05.70£41.00
L50-0063-012-VISAR COATED R<0.5% @ 400~700NM6.312.04.45£41.00
L50-0063-016-VISAR COATED R<0.5% @ 400~700NM6.316.04.00£41.00
L50-0063-025-VISAR COATED R<0.5% @ 400~700NM6.325.03.65£41.00
L50-0063-040-VISAR COATED R<0.5% @ 400~700NM6.340.03.30£41.00
L50-008-010-VISAR COATED R<0.5% @ 400~700NM8.010.06.50£41.00
L50-008-016-VISAR COATED R<0.5% @ 400~700NM8.016.05.10£41.00
L50-008-020-VISAR COATED R<0.5% @ 400~700NM8.020.03.00£41.00
L50-010-016-VISAR COATED R<0.5% @ 400~700NM10.016.06.30£41.00
L50-010-020-VISAR COATED R<0.5% @ 400~700NM10.020.06.35£41.00
L50-010-025-VISAR COATED R<0.5% @ 400~700NM10.025.04.55£41.00
L50-010-040-VISAR COATED R<0.5% @ 400~700NM10.040.04.30£41.00
L50-010-063-VISAR COATED R<0.5% @ 400~700NM10.063.04.00£41.00
L50-012-032-VISAR COATED R<0.5% @ 400~700NM12.531.55.75£43.00
L50-0127-019-VISAR COATED R<0.5% @ 400~700NM12.719.06.00£43.00
L50-0127-025-VISAR COATED R<0.5% @ 400~700NM12.725.07.00£43.00
L50-0127-030-VISAR COATED R<0.5% @ 400~700NM12.730.05.00£43.00
L50-0127-050-VISAR COATED R<0.5% @ 400~700NM12.750.05.00£43.00
L50-0127-075-VISAR COATED R<0.5% @ 400~700NM12.775.04.00£43.00
L50-015-050-VISAR COATED R<0.5% @ 400~700NM15.050.04.70£43.00
L50-016-025-VISAR COATED R<0.5% @ 400~700NM16.025.09.40£43.00
L50-016-032-VISAR COATED R<0.5% @ 400~700NM16.031.55.30£43.00
L50-016-040-VISAR COATED R<0.5% @ 400~700NM16.040.07.30£43.00
L50-016-050-VISAR COATED R<0.5% @ 400~700NM16.050.05.60£43.00
L50-016-063-VISAR COATED R<0.5% @ 400~700NM16.063.05.25£43.00
L50-016-100-VISAR COATED R<0.5% @ 400~700NM16.0100.05.30£43.00
L50-020-063-VISAR COATED R<0.5% @ 400~700NM20.063.07.05£47.00
L50-020-080-VISAR COATED R<0.5% @ 400~700NM20.080.05.60£47.00
L50-025-040-VISAR COATED R<0.5% @ 400~700NM25.040.010.50£55.00
L50-025-050-VISAR COATED R<0.5% @ 400~700NM25.050.010.30£55.00
L50-025-063-VISAR COATED R<0.5% @ 400~700NM25.063.09.20£55.00
L50-025-080-VISAR COATED R<0.5% @ 400~700NM25.080.07.70£55.00
L50-025-100-VISAR COATED R<0.5% @ 400~700NM25.0100.07.00£55.00
L50-025-125-VISAR COATED R<0.5% @ 400~700NM25.0125.05.75£55.00
L50-025-160-VISAR COATED R<0.5% @ 400~700NM25.0160.04.90£55.00
L50-025-200-VISAR COATED R<0.5% @ 400~700NM25.0200.05.65£55.00
L50-025-250-VISAR COATED R<0.5% @ 400~700NM25.0250.04.20£55.00
L50-025-315-VISAR COATED R<0.5% @ 400~700NM25.0315.05.00£55.00
L50-025-400-VISAR COATED R<0.5% @ 400~700NM25.0400.04.80£55.00
L50-0254-030-VISAR COATED R<0.5% @ 400~700NM25.430.014.0£62.00
L50-0254-035-VISAR COATED R<0.5% @ 400~700NM25.435.014.0£62.00
L50-0254-040-VISAR COATED R<0.5% @ 400~700NM25.440.012.50£62.00
L50-0254-045-VISAR COATED R<0.5% @ 400~700NM25.445.09.00£62.00
L50-0254-050-VISAR COATED R<0.5% @ 400~700NM25.450.011.50£62.00
L50-0254-060-VISAR COATED R<0.5% @ 400~700NM25.460.010.5£62.00
L50-0254-075-VISAR COATED R<0.5% @ 400~700NM25.475.09.50£62.00
L50-0254-080-VISAR COATED R<0.5% @ 400~700NM25.480.010.0£62.00
L50-0254-100-VISAR COATED R<0.5% @ 400~700NM25.4100.06.50£62.00
L50-0254-125-VISAR COATED R<0.5% @ 400~700NM25.4125.06.80£62.00
L50-0254-150-VISAR COATED R<0.5% @ 400~700NM25.4150.07.90£62.00
L50-0254-200-VISAR COATED R<0.5% @ 400~700NM25.4200.06.50£62.00
L50-0254-250-VISAR COATED R<0.5% @ 400~700NM25.4250.06.0£62.00
L50-0254-300-VISAR COATED R<0.5% @ 400~700NM25.4300.06.0£62.00
L50-0254-400-VISAR COATED R<0.5% @ 400~700NM25.4400.06.0£62.00
L50-0254-500-VISAR COATED R<0.5% @ 400~700NM25.4500.06.0£62.00
L50-025-500-VISAR COATED R<0.5% @ 400~700NM25.0500.04.65£55.00
L50-030-050-VISAR COATED R<0.5% @ 400~700NM30.050.010.50£67.50
L50-030-080-VISAR COATED R<0.5% @ 400~700NM30.080.010.5£67.50
L50-030-100-VISAR COATED R<0.5% @ 400~700NM30.0100.07.0£67.50
L50-032-160-VISAR COATED R<0.5% @ 400~700NM31.5160.07.35£62.50
L50-032-200-VISAR COATED R<0.5% @ 400~700NM31.5200.06.10£62.50
L50-035-080-VISAR COATED R<0.5% @ 400~700NM35.080.016.05£67.50
L50-035-200-VISAR COATED R<0.5% @ 400~700NM35.0200.010.6£67.50
L50-040-063-VISAR COATED R<0.5% @ 400~700NM40.063.016.50£75.00
L50-040-100-VISAR COATED R<0.5% @ 400~700NM40.0100.011.85£75.00
L50-040-160-VISAR COATED R<0.5% @ 400~700NM40.0160.09.25£75.00
L50-040-250-VISAR COATED R<0.5% @ 400~700NM40.0250.07.65£75.00
L50-040-400-VISAR COATED R<0.5% @ 400~700NM40.0400.05.90£75.00
L50-040-500-VISAR COATED R<0.5% @ 400~700NM40.0500.010.0£85.00
L50-040-750-VISAR COATED R<0.5% @ 400~700NM40.0750.08.00£85.00
L50-050-100-VISAR COATED R<0.5% @ 400~700NM50.0100.015.90£82.50
L50-050-160-VISAR COATED R<0.5% @ 400~700NM50.0160.012.35£82.50
L50-050-250-VISAR COATED R<0.5% @ 400~700NM50.0250.09.55£82.50
L50-050-400-VISAR COATED R<0.5% @ 400~700NM50.0400.08.55£82.50
L50-050-630-VISAR COATED R<0.5% @ 400~700NM50.0630.06.30£82.50
L50-0508-075-VISAR COATED R<0.5% @ 400~700NM50.875.023.0£109.00
L50-0508-080-VISAR COATED R<0.5% @ 400~700NM50.880.018.0£109.00
L50-0508-1000-VISAR COATED R<0.5% @ 400~700NM50.81000.06.00£93.00
L50-0508-100-VISAR COATED R<0.5% @ 400~700NM50.8100.020.0£93.00
L50-0508-150-VISAR COATED R<0.5% @ 400~700NM50.8150.015.0£93.00
L50-0508-180-VISAR COATED R<0.5% @ 400~700NM50.8180.014.0£93.00
L50-0508-200-VISAR COATED R<0.5% @ 400~700NM50.8200.010.50£93.00
L50-0508-250-VISAR COATED R<0.5% @ 400~700NM50.8250.09.50£93.00
L50-0508-300-VISAR COATED R<0.5% @ 400~700NM50.8300.08.00£93.00
L50-0508-400-VISAR COATED R<0.5% @ 400~700NM50.8400.07.00£93.00
L50-0508-500-VISAR COATED R<0.5% @ 400~700NM50.8500.07.00£93.00
L50-0508-750-VISAR COATED R<0.5% @ 400~700NM50.8750.06.50£93.00
L50-060-145-VISAR COATED R<0.5% @ 400~700NM60.0145.018.60£109.00
L50-060-200-VISAR COATED R<0.5% @ 400~700NM60.0200.015.45£109.00
L50-060-300-VISAR COATED R<0.5% @ 400~700NM60.03008.50£109.00
L50-063-150-VISAR COATED R<0.5% @ 400~700NM63.0150.017.40£109.00
