Neutral Density Filters Absorptive

Neutral Density Filters Absorptive

Optical Filters
Have custom requirements?
Contact Us

Stock Specification

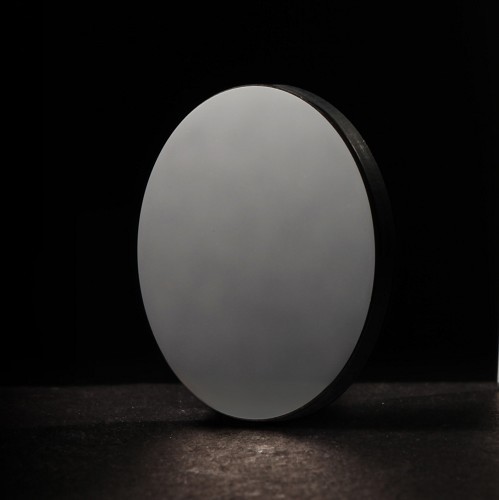

Absorptive Neutral Density Filters Absorptive exhibit a level spectral transmittance in the visible region and attenuate light by absorption with minimal reflection when compared with reflective Neutral Density filters. The neutrality and density of absorptive filters are a function of the material and thickness. They are useful in light control applications, measurment instruments and exposure control in imaging. Optical Density filters exhibit an additive relationship. combining filters with OD values of 0.3 and 1.0 give a total density of 1.3

MATERIAL:

Neutral Grey Filter Glass



FLATNESS

λ/4 @ 633nm per 25mm

DIAMETER TOLERANCE:

+0.0 / -0.2mm



SURFACE QUALITY:

60/40

WAVELENGTH

400~700nm



OD TOLERANCE

+/- 5% @ 546nm
PART NO. QTY BASKET QUOTE Description Dimensions (MM)Thickness (MM) Unit Price Data
Sheet
AND-001-0120.1ND - 79% TRANSMISSION12.5 DIA1.3£13.00
AND-001-0250.1ND - 79% TRANSMISSION25.0 DIA1.3£22.50
AND-001-050D0.1ND - 79% TRANSMISSION50.0 DIA1.3£58.00
AND-001-050SQ0.1ND - 79% TRANSMISSION50.0 SQUARE1.3£58.00
AND-0015-0120.15ND - 70% TRANSMISSION12.5 DIA2.35£13.00
AND-0015-0250.15ND - 70% TRANSMISSION25.0 DIA2.35£22.50
AND-0015-050D0.15ND - 70% TRANSMISSION50.0 DIA2.35£58.00
AND-0015-050SQ0.15ND - 70% TRANSMISSION50.0 SQUARE2.35£58.00
AND-002-0120.2ND - 63% TRANSMISSION12.5 DIA1.50£13.00
AND-002-0250.2ND - 63% TRANSMISSION25.0 DIA1.5£22.50
AND-002-050D0.2ND - 63% TRANSMISSION50.0 DIA1.5£58.00
AND-002-050SQ0.2ND - 63% TRANSMISSION50.0 SQUARE1.5£58.00
AND-003-0120.3ND - 50% TRANSMISSION12.5 DIA2.45£13.00
AND-003-0250.3ND - 50% TRANSMISSION25.0 DIA2.45£22.50
AND-003-050D0.3ND - 50% TRANSMISSION50.0 DIA2.45£58.00
AND-003-050SQ0.3ND - 50% TRANSMISSION50.0 SQUARE2.45£58.00
AND-004-0120.4ND - 40% TRANSMISSION12.5 DIA1.35£13.00
AND-004-0250.4ND - 40% TRANSMISSION25.0 DIA1.35£22.50
AND-004-050D0.4ND - 40% TRANSMISSION50.0 DIA1.35£58.00
AND-004-050SQ0.4ND - 40% TRANSMISSION50.0 SQUARE1.35£58.00
AND-005-0120.5ND - 32% TRANSMISSION12.5 DIA1.75£13.00
AND-005-0250.5ND - 32% TRANSMISSION25.0 DIA1.75£22.50
AND-005-050D0.5ND - 32% TRANSMISSION50.0 DIA1.75£58.00
AND-005-050SQ0.5ND - 32% TRANSMISSION50.0 SQUARE1.75£58.00
AND-006-0120.6ND - 25% TRANSMISSION12.5 DIA2.10£13.00
AND-006-0250.6ND - 25% TRANSMISSION25.0 DIA2.10£22.50
AND-006-050D0.6ND - 25% TRANSMISSION50.0 DIA2.10£58.00
AND-006-050SQ0.6ND - 25% TRANSMISSION50.0 SQUARE2.10£58.00
AND-007-0120.7ND - 20% TRANSMISSION12.5 DIA1.40£13.00
AND-007-0250.7ND - 20% TRANSMISSION25.0 DIA1.40£22.50
AND-007-050D0.7ND - 20% TRANSMISSION50.0 SQUARE1.40£58.00
AND-007-050SQ0.7ND - 20% TRANSMISSION50.0 SQUARE1.40£58.00
AND-009-0120.9ND - 12.5% TRANSMISSION12.5 DIA1.80£13.00
AND-009-0250.9ND - 12.5% TRANSMISSION25.0 DIA1.80£22.50
AND-009-050D0.9ND - 12.5% TRANSMISSION50.0 SQUARE1.80£58.00
AND-009-050SQ0.9ND - 12.5% TRANSMISSION50.0 SQUARE1.80£58.00
AND-010-0121.0ND - 10.0% TRANSMISSION12.5 DIA2.05£13.00
AND-010-0251.0ND - 10.0% TRANSMISSION25.0 DIA2.05£22.50
AND-010-050D1.0ND - 10.0% TRANSMISSION50.0 DIA2.05£58.00
AND-010-050SQ1.0ND - 10.0% TRANSMISSION50.0 SQUARE2.05£58.00
AND-013-0121.3ND - 5.0% TRANSMISSION12.5 DIA2.30£13.00
AND-013-0251.3ND - 5.0% TRANSMISSION25.0 DIA2.30£22.50
AND-013-050D1.3ND - 5.0% TRANSMISSION50.0 DIA2.30£58.00
AND-013-050SQ1.3ND - 5.0% TRANSMISSION50.0 SQUARE2.30£58.00
AND-020-0122.0ND - 1.0% TRANSMISSION12.5 DIA1.25£13.00
AND-020-0252.0ND - 1.0% TRANSMISSION25.0 DIA1.25£22.50
AND-020-050D2.0ND - 1.0% TRANSMISSION50.0 DIA1.25£58.00
AND-020-050SQ2.0ND - 1.0% TRANSMISSION50.0 SQUARE1.25£58.00
AND-030-0123.0ND - 0.1% TRANSMISSION12.5 DIA1.90£13.00
AND-030-0253.0ND - 0.1% TRANSMISSION25.0 DIA1.90£22.50
AND-030-050D3.0ND - 0.1% TRANSMISSION50.0 DIA1.90£58.00
AND-030-050SQ3.0ND - 0.1% TRANSMISSION50.0 SQUARE1.90£58.00
AND-040-0124.0ND - 0.01% TRANSMISSION12.5 DIA1.25£13.00
AND-040-0254.0ND - 0.01% TRANSMISSION25.0 DIA1.25£22.50
AND-040-050D4.0ND - 0.01% TRANSMISSION50.0 DIA1.25£58.00
AND-040-050SQ4.0ND - 0.01% TRANSMISSION50.0 SQUARE1.25£58.00
