BK7 Right Angle Prisms - Precision Grade

BK7 Right Angle Prisms - Precision Grade

Optical Prisms
Have custom requirements?
Contact Us

Stock Specification

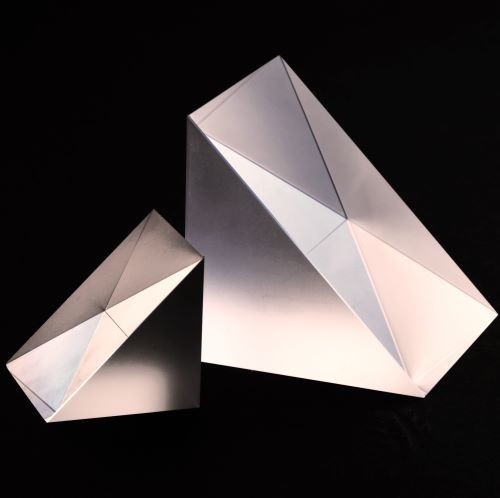

BK7 PrecisionGrade Right angle prisms are used to bend image paths or direct light at 90°. These produce a left handed image, and depending on the orientation, the image may be inverted or reverted. Right angle prisms are also be used in combination for image/beam displacement. Our P12 range of Precision grade Right Angle Prisms are made from N-BK7 for use in various visible light applications, with coatings also available for the NIR  region



MATERIAL N-BK7 GRADE A OPTICAL GLASS   DIMENSIONS +0.0/-0.1mm
FLATNESS λ/10 @ 632.8nm   SURFACE QUALITY 20/10
ANGLE TOLERANCE ± 15 ARC seconds   PYRAMID ERROR < 5 ARC MINUTES
BEVEL 0.2 ~ 0.5mm x 45°   COATING SEE BELOW



PART NO. QTY BASKET QUOTE Description Dimensions (MM)Specification Unit Price Data
Sheet
P12-0011MM RIGHT ANGLE PRISM1 X 1 X 1UNCOATED£47.00
P12-0022MM RIGHT ANGLE PRISM2 X 2 X 2UNCOATED£47.00
P12-0055MM RIGHT ANGLE PRISM5 X 5 X 5UNCOATED£35.00
P12-005-NIR-015MM RIGHT ANGLE PRISM5 X 5 X 5AL HYP + NIR AR COATED R<0.5% 650~1000NM£51.00
P12-005-VIS-015MM RIGHT ANGLE PRISM5 X 5 X 5AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£45.00
P12-0066.3MM RIGHT ANGLE PRISM6.3 X 6.3 X 6.3UNCOATED£35.00
P12-006-NIR-016.3MM RIGHT ANGLE PRISM6.3 X 6.3 X 6.3AL HYP + NIR AR COATED R<0.5% 650~1000NM£55.00
P12-006-VIS-016.3MM RIGHT ANGLE PRISM6.3 X 6.3 X 6.3AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£48.00
P12-0088MM RIGHT ANGLE PRISM8 x 8 x 8UNCOATED£35.00
P12-008-NIR-018MM RIGHT ANGLE PRISM8 x 8 x 8AL HYP + NIR AR COATED R<0.5% 650~1000NM£52.00
P12-008-VIS-018MM RIGHT ANGLE PRISM8 x 8 x 8AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£47.00
P12-01010MM RIGHT ANGLE PRISM10 X 10 X 10UNCOATED£35.00
P12-010-NIR-0110MM RIGHT ANGLE PRISM10 X 10 X 10AL HYP + NIR AR COATED R<0.5% 650~1000NM£53.00
P12-010-VIS-0110MM RIGHT ANGLE PRISM10 X 10 X 10AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£49.00
P12-01212.5MM RIGHT ANGLE PRISM12.5 X 12.5 X 12.5UNCOATED£42.00
P12-012-NIR-0112.5MM RIGHT ANGLE PRISM12.5 X 12.5 X 12.5AL HYP + NIR AR COATED R<0.5% 650~1000NM£59.00
P12-012-VIS-0112.5MM RIGHT ANGLE PRISM12.5 X 12.5 X 12.5AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£54.00
P12-01515MM RIGHT ANGLE PRISM15 X 15 X 15UNCOATED£47.00
P12-015-NIR-0115MM RIGHT ANGLE PRISM15 X 15 X 15AL HYP + NIR AR COATED R<0.5% 650~1000NM£65.00
P12-015-VIS-0115MM RIGHT ANGLE PRISM15 X 15 X 15AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£59.00
P12-02020MM RIGHT ANGLE PRISM20 X 20 X 20UNCOATED£48.00
P12-020-NIR-0120MM RIGHT ANGLE PRISM20 X 20 X 20AL HYP + NIR AR COATED R<0.5% 650~1000NM£65.00
P12-020-VIS-0120MM RIGHT ANGLE PRISM20 X 20 X 20AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£59.00
P12-02525MM RIGHT ANGLE PRISM25 X 25 X 25UNCOATED£48.00
P12-025-NIR-0125MM RIGHT ANGLE PRISM25 X 25 X 25AL HYP + NIR AR COATED R<0.5% 650~1000NM£76.00
P12-025-VIS-0125MM RIGHT ANGLE PRISM25 X 25 X 25AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£69.00
P12-03030MM RIGHT ANGLE PRISM30 X 30 X 30UNCOATED£68.00
P12-030-NIR-0130MM RIGHT ANGLE PRISM30 X 30 X 30AL HYP + NIR AR COATED R<0.5% 650~1000NM£96.00
P12-030-VIS-0130MM RIGHT ANGLE PRISM30 X 30 X 30AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£88.00
P12-04040MM RIGHT ANGLE PRISM40 X 40 X 40UNCOATED£98.00
P12-040-NIR-0140MM RIGHT ANGLE PRISM40 X 40 X 40AL HYP + NIR AR COATED R<0.5% 650~1000NM£135.00
P12-040-VIS-0140MM RIGHT ANGLE PRISM40 X 40 X 40AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£128.00
P12-05050MM RIGHT ANGLE PRISM50 X 50 X 50UNCOATED£138.00
P12-050-NIR-0150MM RIGHT ANGLE PRISM50 X 50 X 50AL HYP + NIR AR COATED R<0.5% 650~1000NM£175.00
P12-050-VIS-0150MM RIGHT ANGLE PRISM50 X 50 X 50AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£167.00
