UV Fused Silica Double-Convex Lenses

UV Fused Silica Double-Convex Lenses

Optical Lenses
Have custom requirements?
Contact Us

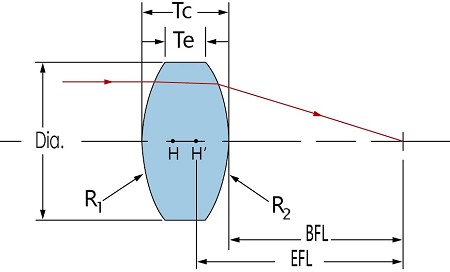

Stock Specification

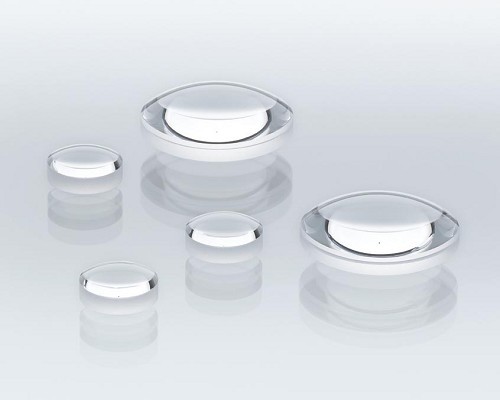

Galvoptics are specialist suppliers of UV Fused Silica Double-Convex Stock optical lenses iand also offer custom made UV fused silica Double convex lenses.

 We have a range of lenses available to purchase directly below using our online payment system, or alternatively we can create a custom built UV Fused Silica lens to match your specific requirements.  Speak to a member of our team on 01268 728077.

MATERIAL UV Grade Fused Silica   DIAMETER TOLERANCE + 0.0 / - 0.1mm
THICKNESS TOLERANCE ± 0.2mm   SURFACE QUALITY 40/20
CENTRATION ≤ 3 arc MINS   FOCAL LENGTH ± 2%



CUSTOM SIZES
DIMENSIONS DIAMETERS 1mm TO > 300mm
COATINGS PLEASE SEE BELOW



PART NO. QTY BASKET QUOTE Description Diameter (MM)Focal LengthThickness (MM) Unit Price Data
Sheet
L45-004-004UNCOATED UV FUSED SILICA4.04.02.95£39.00pdf

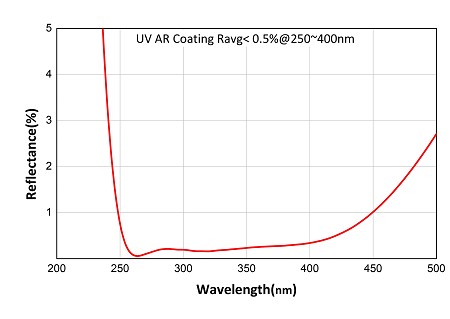

L45-004-004-UVAR COATED R<0.5% @ 250~400NM4.04.02.95£47.50pdf
L45-006-006UNCOATED UV FUSED SILICA6.36.33.67£39.50
L45-006-006-UVAR COATED R<0.5% @ 250~400NM6.36.33.67£47.50
L45-006-010UNCOATED UV FUSED SILICA6.010.03.00£36.00
L45-006-010-UVAR COATED R<0.5% @ 250~400NM6.010.03.00£45.00
L45-006-016UNCOATED UV FUSED SILICA6.016.01.63£36.00
L45-006-016-UVAR COATED R<0.5% @ 250~400NM6.016.01.63£45.00
L45-010-010UNCOATED UV FUSED SILICA10.010.04.83£39.50
L45-010-010-UVAR COATED R<0.5% @ 250~400NM10.010.04.83£47.50
L45-012-012UNCOATED UV FUSED SILICA12.712.76.25£39.50
L45-012-012-UVAR COATED R<0.5% @ 250~400NM12.712.76.25£47.50
L45-012-015UNCOATED UV FUSED SILICA12.715.05.35£36.00
L45-012-015-UVAR COATED R<0.5% @ 250~400NM12.715.05.35£45.00
L45-015-015UNCOATED UV FUSED SILICA15.015.05.40£39.50
L45-015-015-UVAR COATED R<0.5% @ 250~400NM15.015.05.40£47.50
L45-016-016UNCOATED UV FUSED SILICA16.016.06.70£39.50
L45-016-016-UVAR COATED R<0.5% @ 250~400NM16.016.06.70£47.50
L45-025-025UNCOATED UV FUSED SILICA25.425.410.28£49.50
L45-025-025-UVAR COATED R<0.5% @ 250~400NM25.425.410.28£62.50
L45-025-030UNCOATED UV FUSED SILICA25.430.08.60£45.50
L45-025-030-UVAR COATED R<0.5% @ 250~400NM25.430.08.60£59.50
L45-025-060UNCOATED UV FUSED SILICA24.561.83.95£45.50
L45-025-060-UVAR COATED R<0.5% @ 250~400NM25.461.83.95£59.50
L45-025-100UNCOATED UV FUSED SILICA25.4100.03.78£45.50
L45-025-100-UVAR COATED R<0.5% @ 250~400NM25.4100.03.78£59.50
L45-025-300UNCOATED UV FUSED SILICA25.4300.03.10£45.50
L45-025-300-UVAR COATED R<0.5% @ 250~400NM25.4300.03.10£59.50
L45-025-500UNCOATED UV FUSED SILICA25.4500.03.35£45.50
L45-025-500-UVAR COATED R<0.5% @ 250~400NM25.4500.03.35£59.50
L45-025-800UNCOATED UV FUSED SILICA25.4800.03.20£46.00
L45-025-800-UVAR COATED R<0.5% @ 250~400NM25.4800.03.20£59.50
L45-050-075UNCOATED UV FUSED SILICA50.875.012.5£110.00
L45-050-075-UVUNCOATED UV FUSED SILICA50.875.012.5£125.00
L45-050-100UNCOATED UV FUSED SILICA50.8100.010.30£99.50
L45-050-1000UNCOATED UV FUSED SILICA50.81000.03.70£105.00
L45-050-1000-UVAR COATED R<0.5% @ 250~400NM50.81000.03.70£120.00
L45-050-100-UVAR COATED R<0.5% @ 250~400NM50.8100.010.3£117.50
L45-050-150UNCOATED UV FUSED SILICA50.8150.07.80£99.50
L45-050-150-UVAR COATED R<0.5% @ 250~400NM50.8150.07.80£117.50
L45-050-200UNCOATED UV FUSED SILICA50.8200.06.50£99.50
L45-050-200-UVAR COATED R<0.5% @ 250~400NM50.8200.06.50£117.50
L45-050-250UNCOATED UV FUSED SILICA50.8250.05.80£99.50
L45-050-250-UVAR COATED R<0.5% @ 250~400NM50.8250.05.80£117.50
L45-050-300UNCOATED UV FUSED SILICA50.8300.05.40£99.50
L45-050-300-UVAR COATED R<0.5% @ 250~400NM50.8300.05.40£117.50
L45-050-500UNCOATED UV FUSED SILICA50.8500.04.40£99.50
L45-050-500-UVAR COATED R<0.5% @ 250~400NM50.8500.04.40£117.50
