Silicon Windows Si

Silicon Windows Si

Optical Windows

Have custom requirements?
Contact Us

Telephone: +44 (0) 1268 728077

Stock Specification

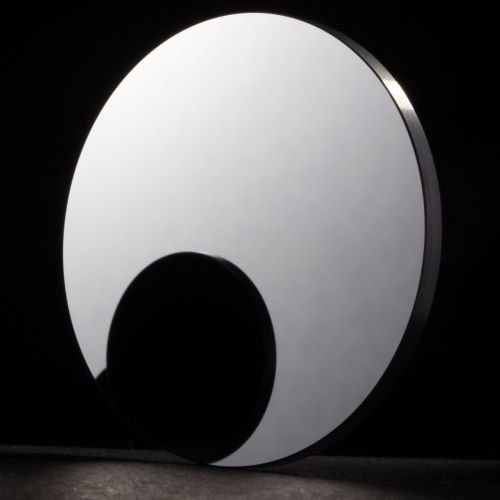

Galvoptics optical grade Silicon Windows are manufactured from Czochralski Silicon and are 99.9% pure. Uncoated, this gives a transmission band of 1.2 - 8 microns. Silicon is perfectly suited for use at 3 - 5 microns. The material has many benefits being a low cost material, perfect for weight delicate applications due to its low density and making it harder and less brittle than material such as germanium. Silicon is used for military, thermal imaging, scientific industry and substrates for optical coatings.

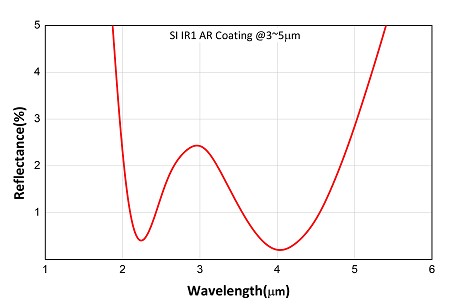

Our Silicon Windows are available in diameters that are uncoated or AR coated in 3-5 microns on both sides. Custom sizes and AR/DLC coating options are available on request.

MATERIAL	SILICON (Si)		DIAMETER TOLERANCE	+ 0.00 / - 0.1mm
THICKNESS TOLERANCE	± 0.1mm		EDGES	Fine ground
SURFACE QUALITY	60/40		FLATNESS	1λ @ 632.8nm
PARALLELISM	≤ 1 arc min		COATINGS	See below

Part No.	Data Sheet	Description	Dimensions (MM)	Thickness (MM)	Unit Price	QTY	BASKET	QUOTE
WSI-010-001		SILICON UNCOATED	10.0	1.00	£52.00		BUY	ADD TO QUOTE
WSI-010-001-IR		AR COATED R<1.5% @ 3~5 MICRON	10.0	1.00	£72.00		BUY	ADD TO QUOTE
WSI-012-002		SILICON UNCOATED	12.5	2.0	£59.00		BUY	ADD TO QUOTE
WSI-012-002-IR		AR COATED R<1.5% @ 3~5 MICRON	12.5	2.0	£78.00		BUY	ADD TO QUOTE
WSI-0127-002		SILICON UNCOATED	12.7	2.0	£59.00		BUY	ADD TO QUOTE
WSI-0127-002-IR		AR COATED R<1.5% @ 3~5 MICRON	12.7	2.0	£78.00		BUY	ADD TO QUOTE
WSI-025-002		SILICON UNCOATED	25.0	2.0	£78.00		BUY	ADD TO QUOTE
WSI-025-002-IR		AR COATED R<1.5% @ 3~5 MICRON	25.0	2.0	£117.50		BUY	ADD TO QUOTE
WSI-0254-002		SILICON UNCOATED	25.4	2.0	£78.00		BUY	ADD TO QUOTE
WSI-0254-002-IR		AR COATED R<1.5% @ 3~5 MICRON	25.4	2.0	£117.50		BUY	ADD TO QUOTE
WSI-040-002		SILICON UNCOATED	40.0	2.0	£115.00		BUY	ADD TO QUOTE
WSI-040-002-IR		AR COATED R<1.5% @ 3~5μm	40.0	2.0	£165.00		BUY	ADD TO QUOTE
WSI-050-003		SILICON UNCOATED	50.0	3.0	£145.00		BUY	ADD TO QUOTE
WSI-050-003-IR		AR COATED R<1.5% @ 3~5 MICRON	50.0	3.0	£195.00		BUY	ADD TO QUOTE

PART NO.	QTY	BASKET	QUOTE	Description	Dimensions (MM)	Thickness (MM)	Unit Price	Data Sheet
WSI-010-001		BUY	ADD TO QUOTE	SILICON UNCOATED	10.0	1.00	£52.00
WSI-010-001-IR		BUY	ADD TO QUOTE	AR COATED R<1.5% @ 3~5 MICRON	10.0	1.00	£72.00
WSI-012-002		BUY	ADD TO QUOTE	SILICON UNCOATED	12.5	2.0	£59.00
WSI-012-002-IR		BUY	ADD TO QUOTE	AR COATED R<1.5% @ 3~5 MICRON	12.5	2.0	£78.00
WSI-0127-002		BUY	ADD TO QUOTE	SILICON UNCOATED	12.7	2.0	£59.00
WSI-0127-002-IR		BUY	ADD TO QUOTE	AR COATED R<1.5% @ 3~5 MICRON	12.7	2.0	£78.00
WSI-025-002		BUY	ADD TO QUOTE	SILICON UNCOATED	25.0	2.0	£78.00
WSI-025-002-IR		BUY	ADD TO QUOTE	AR COATED R<1.5% @ 3~5 MICRON	25.0	2.0	£117.50
WSI-0254-002		BUY	ADD TO QUOTE	SILICON UNCOATED	25.4	2.0	£78.00
WSI-0254-002-IR		BUY	ADD TO QUOTE	AR COATED R<1.5% @ 3~5 MICRON	25.4	2.0	£117.50
WSI-040-002		BUY	ADD TO QUOTE	SILICON UNCOATED	40.0	2.0	£115.00
WSI-040-002-IR		BUY	ADD TO QUOTE	AR COATED R<1.5% @ 3~5μm	40.0	2.0	£165.00
WSI-050-003		BUY	ADD TO QUOTE	SILICON UNCOATED	50.0	3.0	£145.00
WSI-050-003-IR		BUY	ADD TO QUOTE	AR COATED R<1.5% @ 3~5 MICRON	50.0	3.0	£195.00
