BK7 Cylindrical Plano Convex Lenses

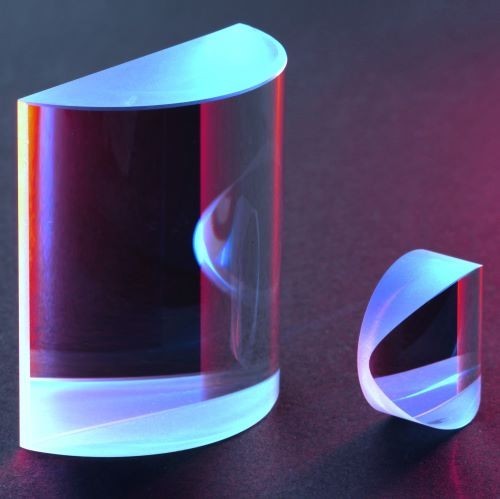

Plano Convex cylindrical lenses are ideal for applications requiring magnification in one dimension. A pair of positive cylindrical lenses can be used to collimate and circularize the output of a laser diode. Our BK7 Plano Convex Cylindrical lenses are available uncoated or with one of three anti-reflection coatings: VIS (400-700nm); NIR (650-1050nm) and SWIR(1000-1650nm).



THICKNESS TOLERANCE ± 0.2mm   DIAMETER TOLERANCE + 0.0 / - 0.1mm
CENTRATION 3 ~ 5 Arc Mins   SURFACE QUALITY 60/40
BEVEL 0.2mm @ 45deg
  FOCAL LENGTH ± 2%



PART NO. QTY BASKET QUOTE Description Diameter (MM)Focal LengthThickness (MM) Unit Price Data
Sheet
L30-005-005-020CYLINDRICAL LENS UNCOATEDX=5.0MM X Y=5.0MM20.02.30£35.00
L30-010-010-010CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM10.05.90£36.00
L30-010-010-012CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM12.74.30£36.00
L30-010-010-015CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM15.03.80£36.00
L30-010-010-020CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM20.03.30£36.00
L30-010-010-025CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM25.03.00£36.00
L30-010-010-040CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM40.02.60£36.00
L30-010-010-050CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM50.02.50£36.00
L30-010-010-075CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM75.02.30£36.00
L30-010-010-100CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM100.02.25£36.00
L30-010-010-1000CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM1000.02.02£41.00
L30-010-010-150CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM150.02.15£38.00
L30-010-010-200CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM200.02.12£38.00
L30-010-010-250CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM250.02.10£38.00
L30-010-010-300CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM300.02.08£38.00
L30-010-010-500CYLINDRICAL LENS UNCOATEDX=10.0MM X Y=10.0MM500.02.05£41.00
L30-012-012CYLINDRICAL LENS UNCOATED12.5 DIAMETER12.76.55£36.00
L30-012-025CYLINDRICAL LENS UNCOATED12.5 DIAMETER25.03.60£36.00
L30-012-050CYLINDRICAL LENS UNCOATED12.5 DIAMETER50.02.77£36.00
L30-012-075CYLINDRICAL LENS UNCOATED12.5 DIAMETER75.02.50£36.00
L30-012-100CYLINDRICAL LENS UNCOATED12.5 DIAMETER100.02.38£36.00
L30-020-010-010CYLINDRICAL LENS UNCOATEDX=20.0MM X Y=10.0MM10.05.90£36.00
L30-020-010-012CYLINDRICAL LENS UNCOATEDX=20.0MM X Y=10.0MM12.74.30£36.00
L30-020-010-015CYLINDRICAL LENS UNCOATEDX=20.0MM X Y=10.0MM15.03.80£36.00
L30-020-010-020CYLINDRICAL LENS UNCOATEDX=20.0MM X Y=10.0MM20.03.30£36.00
L30-020-010-025CYLINDRICAL LENS UNCOATEDX=20.0MM X Y=10.0MM25.03.00£36.00
L30-020-010-040CYLINDRICAL LENS UNCOATEDX=20.0MM X Y=10.0MM40.02.60£36.00
