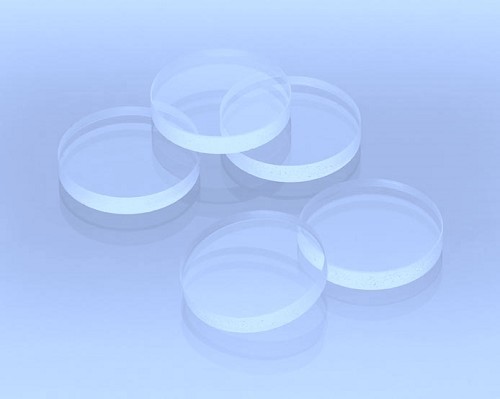

Sapphire Windows - Standard grade

Sapphire Windows - Standard grade

Optical Windows
Have custom requirements?
Contact Us

Stock Specification



NEW STOCK SIZES AVAILABLE

Due to popular demand new stock sizes have been added.

WSR-030-003 a 30mm diameter 3mm thick Sapphire window and WSR-030-0005 a 30mm diameter 0.5mm thick Sapphire window

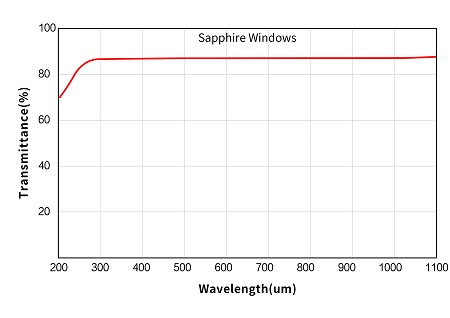

Sapphire Windows are ideal for demanding applications due to their, high thermal conductivity, extreme surface hardness and their resistance to attack from acids and alkalis. Second only to Diamond, Sapphire is an extremely hard crystal and due to the structural strength sapphire windows can be much thinner than other commonly used windows with an improvement in transmission. Al2O3 has a transmission range from 0.2 - 5.5μm. ( 200nm to 5500nm)

Sapphire windows can be used for Sensors and Detectors, viewing ports, cover lenses, cover windows, sapphire pressure windows, vacuum sapphire windows, oil view ports, gas view ports

Sapphire Optical Windows offer

  • Extreme Surface Hardness with high Chemical Resistance
  • Used for Wavelengths Ranging From Ultravoilet (UV) to Mid-Infrared
  • Stronger and thinner than Standard Optical Glass Windows





PART NO. QTY BASKET QUOTE Description Dimensions (MM)Thickness (MM) Unit Price Data
Sheet
wsr-002-001sapphire window - random axis2.0 diameter1.0£13.25
WSR-003-0005SAPPHIRE WINDOW - RANDOM AXIS3.0 DIAMETER0.5£15.00
WSR-005-0005SAPPHIRE WINDOW - RANDOM AXIS5.0 DIAMETER0.5£18.00
WSR-006-0005SAPPHIRE WINDOW - RANDOM AXIS6.3 DIAMETER0.5£19.00
WSR-008-001SAPPHIRE WINDOW - RANDOM AXIS8.0 DIAMETER1.0£23.00
wsr-009-0005sapphire window - random axis9.4 diameter0.5£19.50
wsr-010-002sapphire window - random axis10.0 diameter2.0£13.00
WSR-012-002SAPPHIRE WINDOW - RANDOM AXIS12.5 DIAMETER2.0£27.50
WSR-012-004SAPPHIRE WINDOW - RANDOM AXIS12.0 DIAMETER4.0£31.00
wsr-022-0003sapphire window - random axis22.2 diameter0.35£29.00
wsr-022-0004sapphire window - random axis22.2 diameter0.4£29.00
wsr-025-0005sapphire window - random axis25.4 diameter0.5£35.00
WSR-025-001SAPPHIRE WINDOW - RANDOM AXIS25.0 DIAMETER1.0£38.00
WSR-030-0005sapphire window - random axis30.0 diameter0.5£27.50
WSR-030-003sapphire window - random axis30.0 diameter3.0£32.00
wsr-078-003sapphire window - random axis78.3 diameter3.0£167.00
wsr-086-003sapphire window - random axis86.0 diameter3.0£185.00
