BK7 Right Angle Prism

BK7 Right Angle Prism

Optical Prisms
Have custom requirements?
Contact Us

Stock Specification

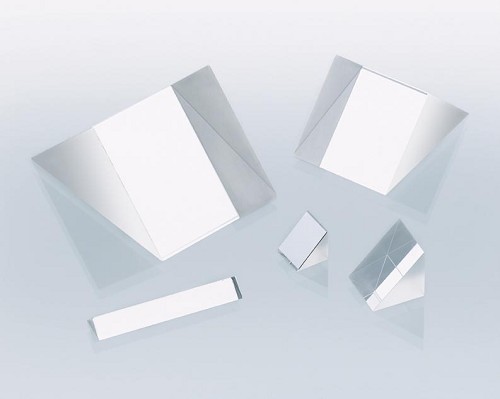

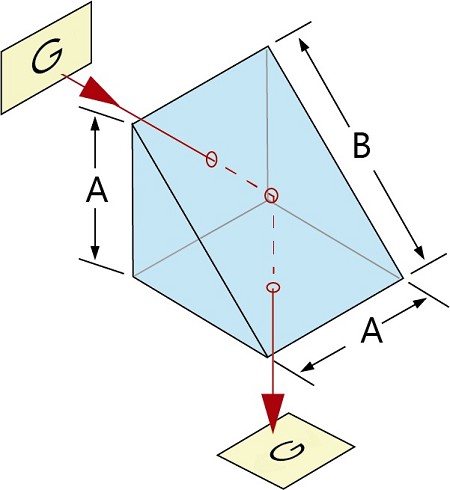

BK7 Right angle prisms are used to bend image paths or direct light at 90°. These produce a left handed image, and depending on the orientation, the image may be inverted or reverted. Right angle prisms are also be used in combination for image/beam displacement. Our P11 range of Right Angle Prisms are made from N-BK7 for use in various visible light applications, with coatings also available for the NIR  region

MATERIAL N-BK7
  DIMENSIONS +0.0/-0.2mm
FLATNESS λ/4 @ 632.8nm   SURFACE QUALITY 60/40
ANGLE TOLERANCE ± 3 ARC MINUTES   PYRAMID ERROR < 10 ARC MINUTES
BEVEL 0.2 ~ 0.5mm x 45°   COATING SEE BELOW



PART NO. QTY BASKET QUOTE Description Dimensions (MM)Specification Unit Price Data
Sheet
P11-0011MM RIGHT ANGLE PRISM1 X 1 X 1UNCOATED£35.00
P11-0022MM RIGHT ANGLE PRISM2 X 2 X 2UNCOATED£38.00
P11-0055MM RIGHT ANGLE PRISM5 X 5 X 5UNCOATED£28.00

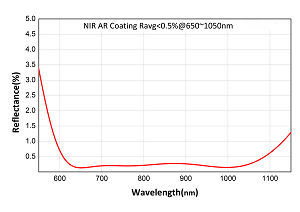

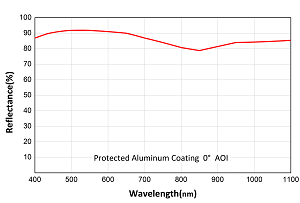

P11-005-NIR-015MM RIGHT ANGLE PRISM5 X 5 X 5AL HYP + NIR AR COATED R<0.5% 650~1000NM£51.00

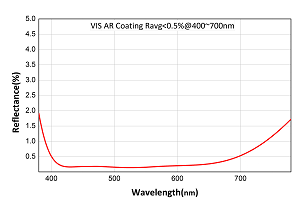

P11-005-VIS-015MM RIGHT ANGLE PRISM5 X 5 X 5AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£40.00
P11-0066.3MM RIGHT ANGLE PRISM6.3 X 6.3 X 6.3UNCOATED£30.00
P11-006-NIR-016.3MM RIGHT ANGLE PRISM6.3 X 6.3 X 6.3AL HYP + NIR AR COATED R<0.5% 650~1000NM£52.00
P11-006-VIS-016.3MM RIGHT ANGLE PRISM6.3 X 6.3 X 6.3AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£50.00
P11-01010MM RIGHT ANGLE PRISM10 X 10 X 10UNCOATED£30.00
P11-010-NIR-0110MM RIGHT ANGLE PRISM10 X 10 X 10AL HYP + NIR AR COATED R<0.5% 650~1000NM£55.00
P11-010-VIS-0110MM RIGHT ANGLE PRISM10 X 10 X 10AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£48.00
P11-01212.5MM RIGHT ANGLE PRISM12.5 X 12.5 X 12.5UNCOATED£30.00
P11-012-NIR-0112.5MM RIGHT ANGLE PRISM12.5 X 12.5 X 12.5AL HYP + NIR AR COATED R<0.5% 650~1000NM£45.00
P11-012-VIS-0112.5MM RIGHT ANGLE PRISM12.5 X 12.5 X 12.5AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£42.00
P11-01515MM RIGHT ANGLE PRISM15 X 15 X 15UNCOATED£33.00
P11-015-NIR-0115MM RIGHT ANGLE PRISM15 X 15 X 15AL HYP + NIR AR COATED R<0.5% 650~1000NM£46.00
P11-015-VIS-0115MM RIGHT ANGLE PRISM15 X 15 X 15AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£43.00
P11-02020MM RIGHT ANGLE PRISM20 X 20 X 20UNCOATED£32.00
P11-020-NIR-0120MM RIGHT ANGLE PRISM20 X 20 X 20AL HYP + NIR AR COATED R<0.5% 650~1000NM£55.00
P11-020-VIS-0120MM RIGHT ANGLE PRISM20 X 20 X 20AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£48.00
P11-02525MM RIGHT ANGLE PRISM25X 25 X 25UNCOATED£37.50
P11-025-NIR-0125MM RIGHT ANGLE PRISM25X 25 X 25AL HYP + NIR AR COATED R<0.5% 650~1000NM£62.00
P11-025-VIS-0125MM RIGHT ANGLE PRISM25X 25 X 25AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£58.00
P11-03030MM RIGHT ANGLE PRISM30 X 30 X 30UNCOATED£45.00
P11-030-NIR-0130MM RIGHT ANGLE PRISM30 X 30 X 30AL HYP + NIR AR COATED R<0.5% 650~1000NM£82.00
P11-030-VIS-0130MM RIGHT ANGLE PRISM30 X 30 X 30AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£74.00
P11-04040MM RIGHT ANGLE PRISM40 X 40 X 40UNCOATED£84.00
P11-040-NIR-0140MM RIGHT ANGLE PRISM40 X 40 X 40AL HYP + NIR AR COATED R<0.5% 650~1000NM£115.00
P11-040-VIS-0140MM RIGHT ANGLE PRISM40 X 40 X 40AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£108.00
P11-05050MM RIGHT ANGLE PRISM50 X 50 X 50UNCOATED£115.00
P11-050-NIR-0150MM RIGHT ANGLE PRISM50 X 50 X 50AL HYP + NIR AR COATED R<0.5% 650~1000NM£145.00
P11-050-VIS-0150MM RIGHT ANGLE PRISM50 X 50 X 50AL HYP + VISIBLE AR COATED R<0.5% 400~700NM£140.00
