Stock Specification

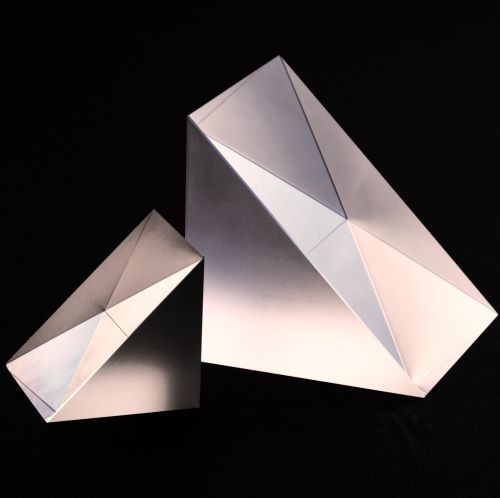

Fused Silica Right angle prisms are used to bend image paths or direct light at 90°. These produce a left handed image, and depending on the orientation, the image may be inverted or reverted. Right angle prisms are also be used in combination for image/beam displacement. Our P16 range of Fused Silica Right Angle Prisms are made from UV grade Fused Silica for use in UV applications. UV Antireflection coatings are available
| MATERIAL | FUSED SILICA |

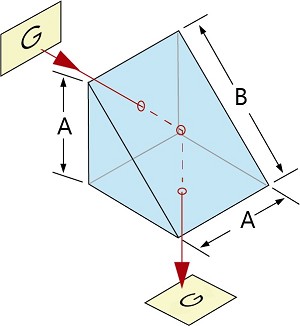

DIMENSIONS |
+0.0/-0.2mm | |
| FLATNESS | λ/4 @ 632.8nm | SURFACE QUALITY | 60/40 | |
| ANGLE TOLERANCE | ± 3 ARC MINUTES | PYRAMID ERROR | < 10 ARC MINUTES | |
| BEVEL | 0.2 ~ 0.5mm x 45° | COATING | SEE BELOW |
