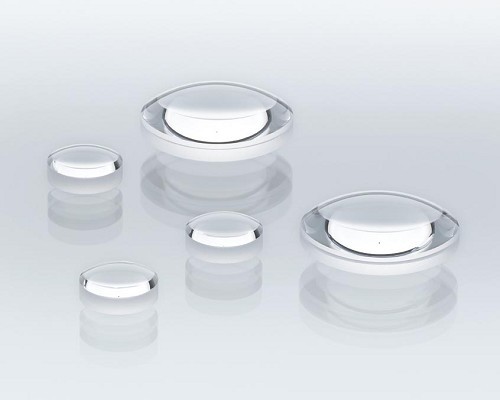

BK7 Bi Convex Lenses

BK7 Bi Convex Lenses

Have custom requirements?
Contact Us

Telephone: +44 (0) 1268 728077

Stock Specification

Our bi-convex lenses have the same radius of curve on both sides. We offer AR coatings for visible VIS, near infrared NIR and short wave infrared SWIR

MATERIAL	N-BK7		DIAMETER TOLERANCE	+ 0.0 / - 0.1mm
THICKNESS TOLERANCE	± 0.2mm		SURFACE QUALITY	60/40
CENTRATION	≤ 3 arc MINS		FOCAL LENGTH	± 2%
IRREGULARITY	λ/4 @ 632.8nm		COATING	CONTACT US

Part No.	Data Sheet	Description	Diameter (MM)	Focal Length	Thickness (MM)	Unit Price	QTY	BASKET	QUOTE
L15-002-002		N-BK7 Bi-convex	2.0	2.0	1.6	£22.50		BUY	ADD TO QUOTE
L15-002-0025		N-BK7 Bi-convex	2.0	2.5	1.5	£22.50		BUY	ADD TO QUOTE
L15-003-003		N-BK7 Bi-convex	3.0	3.0	1.9	£20.00		BUY	ADD TO QUOTE
L15-003-006		N-BK7 Bi-convex	3.0	6.3	1.4	£20.00		BUY	ADD TO QUOTE
L15-004-004		N-BK7 Bi-convex	4.0	4.0	2.2	£20.00		BUY	ADD TO QUOTE
L15-005-0045		N-BK7 Bi-convex	5.0	4.5	2.65	£20.00		BUY	ADD TO QUOTE
L15-006-006		N-BK7 Bi-convex	6.3	6.3	3.3	£19.00		BUY	ADD TO QUOTE
L15-006-010		N-BK7 Bi-convex	6.0	10.0	6.00	£16.00		BUY	ADD TO QUOTE
L15-0063-006		N-BK7 Bi-convex	6.3	6.3	3.35	£20.00		BUY	ADD TO QUOTE
L15-010-010		N-BK7 Bi-convex	10.0	10.0	4.9	£17.00		BUY	ADD TO QUOTE
L15-012-012		N-BK7 Bi-convex	12.5	12.5	5.6	£17.00		BUY	ADD TO QUOTE
L15-013-018		N-BK7 Bi-convex	13.0	18.2	4.40	£16.00		BUY	ADD TO QUOTE
L15-013-020		N-BK7 Bi-convex	12.85	20.0	3.0	£16.00		BUY	ADD TO QUOTE
L15-016-016		N-BK7 Bi-convex	16.0	16.0	6.5	£17.00		BUY	ADD TO QUOTE
L15-025-025		N-BK7 Bi-convex	25.0	25.0	9.0	£19.00		BUY	ADD TO QUOTE
L15-025-040		N-BK7 Bi-convex	25.0	40.0	5.50	£16.00		BUY	ADD TO QUOTE
L15-026-023		N-BK7 Bi-convex	26.0	23.0	10.5	£18.00		BUY	ADD TO QUOTE
L15-030-030		N-BK7 Bi-convex	30.0	30.0	10.35	£23.00		BUY	ADD TO QUOTE
L15-040-040		N-BK7 Bi-convex	40.0	40.0	13.6	£29.00		BUY	ADD TO QUOTE
L15-050-050		N-BK7 Bi-convex	50.0	50.0	16.9	£45.00		BUY	ADD TO QUOTE
L15-063-063		N-BK7 Bi-convex	63.0	63.0	20.4	£65.00		BUY	ADD TO QUOTE
L15-100-100		N-BK7 Bi-convex	100.0	100.0	31.5	£138.00		BUY	ADD TO QUOTE

PART NO.	QTY	BASKET	QUOTE	Description	Diameter (MM)	Focal Length	Thickness (MM)	Unit Price	Data Sheet
L15-002-002		BUY	ADD TO QUOTE	N-BK7 Bi-convex	2.0	2.0	1.6	£22.50
L15-002-0025		BUY	ADD TO QUOTE	N-BK7 Bi-convex	2.0	2.5	1.5	£22.50
L15-003-003		BUY	ADD TO QUOTE	N-BK7 Bi-convex	3.0	3.0	1.9	£20.00
L15-003-006		BUY	ADD TO QUOTE	N-BK7 Bi-convex	3.0	6.3	1.4	£20.00
L15-004-004		BUY	ADD TO QUOTE	N-BK7 Bi-convex	4.0	4.0	2.2	£20.00
L15-005-0045		BUY	ADD TO QUOTE	N-BK7 Bi-convex	5.0	4.5	2.65	£20.00
L15-006-006		BUY	ADD TO QUOTE	N-BK7 Bi-convex	6.3	6.3	3.3	£19.00
L15-006-010		BUY	ADD TO QUOTE	N-BK7 Bi-convex	6.0	10.0	6.00	£16.00
L15-0063-006		BUY	ADD TO QUOTE	N-BK7 Bi-convex	6.3	6.3	3.35	£20.00
L15-010-010		BUY	ADD TO QUOTE	N-BK7 Bi-convex	10.0	10.0	4.9	£17.00
L15-012-012		BUY	ADD TO QUOTE	N-BK7 Bi-convex	12.5	12.5	5.6	£17.00
L15-013-018		BUY	ADD TO QUOTE	N-BK7 Bi-convex	13.0	18.2	4.40	£16.00
L15-013-020		BUY	ADD TO QUOTE	N-BK7 Bi-convex	12.85	20.0	3.0	£16.00
L15-016-016		BUY	ADD TO QUOTE	N-BK7 Bi-convex	16.0	16.0	6.5	£17.00
L15-025-025		BUY	ADD TO QUOTE	N-BK7 Bi-convex	25.0	25.0	9.0	£19.00
L15-025-040		BUY	ADD TO QUOTE	N-BK7 Bi-convex	25.0	40.0	5.50	£16.00
L15-026-023		BUY	ADD TO QUOTE	N-BK7 Bi-convex	26.0	23.0	10.5	£18.00
L15-030-030		BUY	ADD TO QUOTE	N-BK7 Bi-convex	30.0	30.0	10.35	£23.00
L15-040-040		BUY	ADD TO QUOTE	N-BK7 Bi-convex	40.0	40.0	13.6	£29.00
L15-050-050		BUY	ADD TO QUOTE	N-BK7 Bi-convex	50.0	50.0	16.9	£45.00
L15-063-063		BUY	ADD TO QUOTE	N-BK7 Bi-convex	63.0	63.0	20.4	£65.00
L15-100-100		BUY	ADD TO QUOTE	N-BK7 Bi-convex	100.0	100.0	31.5	£138.00
