Amici Roof Prisms

Telephone: +44 (0) 1268 728077

Stock Specification

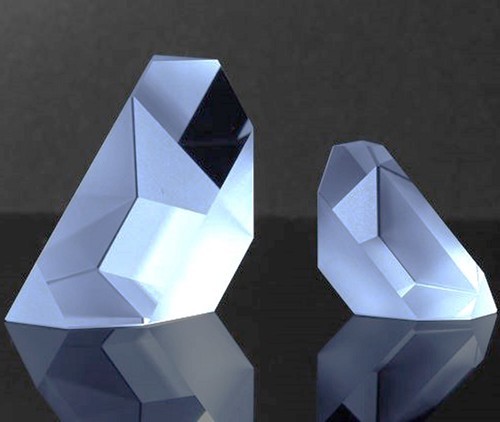

Roof prisms revert and invert the image and bend the deflected light by the angle of 90°. Amici roof prisms are used with telescopes and other optical instruments where an inverted image is required from an objective, turn it right side up and bend it through a 90° angle in order to maintain the correct visual orientation.

MATERIAL	N-BK7 GRADE A OPTICAL GLASS	DIMENSIONS	+0.0/-0.1mm
FLATNESS	λ/10 @ 632.8nm	SURFACE QUALITY	60/40
ROOF ANGLE TOLERANCE	± 3 ARC minutes	PYRAMID ERROR	± 3 ARC minutes
OTHER ANGLE TOLERANCE	± 3 ARC minutes	COATING	UNCOATED

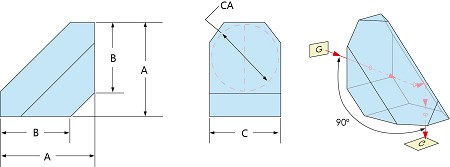

Part No.	Data Sheet	Description	Dimensions (MM)	Specification	Unit Price	QTY	BASKET	QUOTE
P15-010		10MM AMICI ROOF PRISM	A=13.7 X B=10 X C=10	UNCOATED	£72.00		BUY	ADD TO QUOTE
P15-015		15MM AMICI ROOF PRISM	A=20.55 X B=15 X C=15	UNCOATED	£78.00		BUY	ADD TO QUOTE
P15-020		20MM AMICI ROOF PRISM	A=27.4 X B=20 X C=20	UNCOATED	£87.00		BUY	ADD TO QUOTE
P15-030		30MM AMICI ROOF PRISM	A=41.1 X B=30 X C=30	UNCOATED	£135.00		BUY	ADD TO QUOTE

PART NO.	QTY	BASKET	QUOTE	Description	Dimensions (MM)	Specification	Unit Price	Data Sheet
P15-010		BUY	ADD TO QUOTE	10MM AMICI ROOF PRISM	A=13.7 X B=10 X C=10	UNCOATED	£72.00
P15-015		BUY	ADD TO QUOTE	15MM AMICI ROOF PRISM	A=20.55 X B=15 X C=15	UNCOATED	£78.00
P15-020		BUY	ADD TO QUOTE	20MM AMICI ROOF PRISM	A=27.4 X B=20 X C=20	UNCOATED	£87.00
P15-030		BUY	ADD TO QUOTE	30MM AMICI ROOF PRISM	A=41.1 X B=30 X C=30	UNCOATED	£135.00
