UV Fused Silica Windows - NIR AR 600-1100nm

Optical Windows

Have custom requirements?
Contact Us

Telephone: +44 (0) 1268 728077

Stock Specification

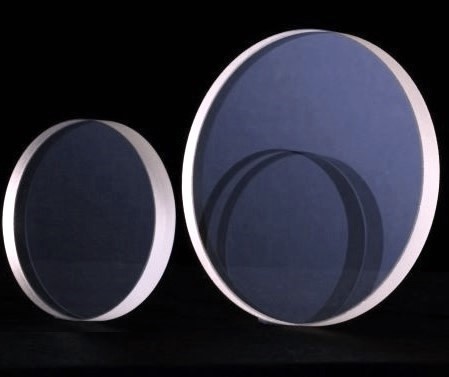

FUSED SILCA WINDOWS AR coated for the 600~1100nm Near Infrared NIR range

For UNCOATED UV FUSED SILICA WINDOWS please click HERE

For UV 250~400 COATED FUSED SILICA WINDOWS please click HERE

For VIS 350~700 COATED FUSED SILICA WINDOWS please click HERE

For SWIR 900~1700 COATED FUSED SILICA WINDOWS please click HERE

UV grade fused silica is widely used for applications that benefit from increased transmission deeper into the UV than BK7. UV fused silica also offers a lower refractive index for a given wavelength, better homogeneity, and lower thermal expansion than BK7.

MATERIAL	UV FUSED SILICA	DIMENSION	+0.0 / - 0.1mm
FLATNESS	λ/4 @ 633nm	THICKNESS	± 0.2mm
SURFACE QUALITY	60/40	PARALLELISM	< 30 ARC SECONDS
BEVEL	0.2 x 45°	COATING	NIR AR 600~1100nm

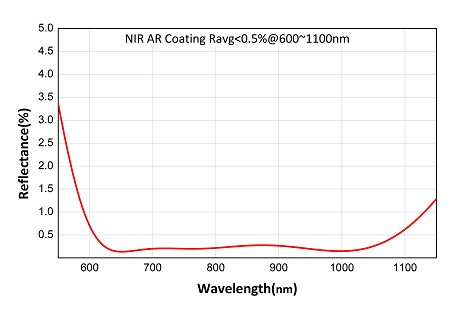

These windows are AR coated for the NIR wavelength range.

Part No.	Data Sheet	Description	Dimensions (MM)	Thickness (MM)	Unit Price	QTY	BASKET	QUOTE
WFS-005-002-NIR		AR COATED R<0.5% @ 600~1100NM	5.0 DIAMETER	2.0	£19.00		BUY	ADD TO QUOTE
WFS-010-002-NIR		AR COATED R<0.5% @ 600~1100NM	10.0 DIAMETER	2.0	£19.00		BUY	ADD TO QUOTE
WFS-012-002-NIR		AR COATED R<0.5% @ 600~1100NM	12.5 DIAMETER	2.0	£19.00		BUY	ADD TO QUOTE
WFS-0127-002-NIR		AR COATED R<0.5% @ 600~1100NM	12.7 DIAMETER	2.0	£19.00		BUY	ADD TO QUOTE
WFS-020-002-NIR		AR COATED R<0.5% @ 600~1100NM	20.0 DIAMETER	2.0	£23.00		BUY	ADD TO QUOTE
WFS-025-002-NIR		AR COATED R<0.5% @ 600~1100NM	25.0 DIAMETER	2.0	£38.50		BUY	ADD TO QUOTE
WFS-0254-002-NIR		AR COATED R<0.5% @ 600~1100NM	25.4 DIAMETER	2.0	£38.50		BUY	ADD TO QUOTE
WFS-030-003-NIR		AR COATED R<0.5% @ 600~1100NM	30.0 DIAMETER	3.0	£49.50		BUY	ADD TO QUOTE
WFS-038-004-NIR		AR COATED R<0.5% @ 600~1100NM	38.1 DIAMETER	4.0	£70.00		BUY	ADD TO QUOTE
WFS-050-004-NIR		AR COATED R<0.5% @ 600~1100NM	50.0 DIAMETER	4.0	£101.00		BUY	ADD TO QUOTE
WFS-0508-004-NIR		AR COATED R<0.5% @ 600~1100NM	50.8 DIAMETER	4.0	£101.00		BUY	ADD TO QUOTE

PART NO.	QTY	BASKET	QUOTE	Description	Dimensions (MM)	Thickness (MM)	Unit Price	Data Sheet
WFS-005-002-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	5.0 DIAMETER	2.0	£19.00
WFS-010-002-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	10.0 DIAMETER	2.0	£19.00
WFS-012-002-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	12.5 DIAMETER	2.0	£19.00
WFS-0127-002-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	12.7 DIAMETER	2.0	£19.00
WFS-020-002-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	20.0 DIAMETER	2.0	£23.00
WFS-025-002-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	25.0 DIAMETER	2.0	£38.50
WFS-0254-002-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	25.4 DIAMETER	2.0	£38.50
WFS-030-003-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	30.0 DIAMETER	3.0	£49.50
WFS-038-004-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	38.1 DIAMETER	4.0	£70.00
WFS-050-004-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	50.0 DIAMETER	4.0	£101.00
WFS-0508-004-NIR		BUY	ADD TO QUOTE	AR COATED R<0.5% @ 600~1100NM	50.8 DIAMETER	4.0	£101.00

UV Fused Silica Windows - NIR AR 600-1100nm

FUSED SILCA WINDOWS AR coated for the 600~1100nm Near Infrared NIR range

MATERIAL

UV FUSED SILICA

DIMENSION

+0.0 / - 0.1mm

FLATNESS

λ/4 @ 633nm

THICKNESS

± 0.2mm

SURFACE QUALITY

60/40

PARALLELISM

< 30 ARC SECONDS

BEVEL

0.2 x 45°

COATING

NIR AR 600~1100nm
