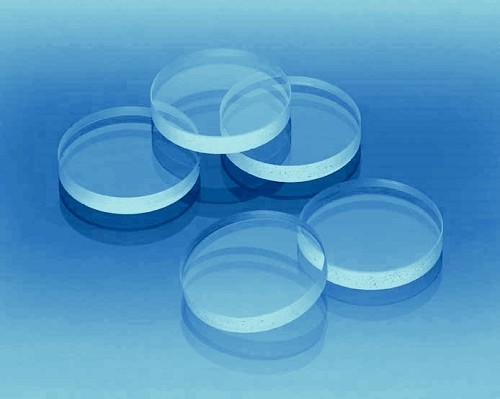

Calcium Fluoride CaF2 Windows

Calcium Fluoride CaF2 Windows

Optical Windows

Stock Specification

MATERIAL

CALCIUM FLUORIDE (CaF2)



DIAMETER

+0.0 / - 0.1mm

FLATNESS

½ @ 632.8nm



THICKNESS

± 0.1mm

SURFACE QUALITY

40/20



PARALLELISM

< 3 ARC MINUTES

BEVEL

0.2 x 45°



COATING

ON REQUEST



Calcium Fluoride ( CaF2 ) windows can be used for Ultraviolet (UV) through to Infrared (IR) applications, due to its transmission range from 160nm up to 8 microns.

Calcium Fluoride offers Low Absorption and High Transmission.  UV Grade Calcium Fluoride can be used down to 160n

IR grade can be used for Applications Ranging from 250nm through to 8μm

Calcium fluoride's low refractive index allows it to be used without an anti-reflective coating.

Windows manufactured from vacuum UV grade calcium fluoride are commonly found in cryogenically cooled thermal imaging systems.

We manufacture CaF2 windows in a wide variety of  sizes, and can easily produce to your exact dimensions.



PART NO. QTY BASKET QUOTE Description Dimensions (MM)Thickness (MM) Unit Price Data
Sheet
wcf-022-002CaF2 window22.0 diameter2.0£22.00
WCF-022-017Custom CaF2 window22.14 x 17.142.086£138.35
wcf-025-002CaF2 window25.2 diameter2.0£21.35
wcf-040-002CaF2 window40.0 diameter2.0£51.00
wcf-044-002CaF2 window44.2 diameter2.0£59.00
