SCHOTT Bandpass Filters

SCHOTT Bandpass Filters

Optical Filters

Stock Specification

SCHOTT Bandpass filters available from stock

A band-pass filter  passes frequencies within a certain range and rejects (attenuates) frequencies outside that range

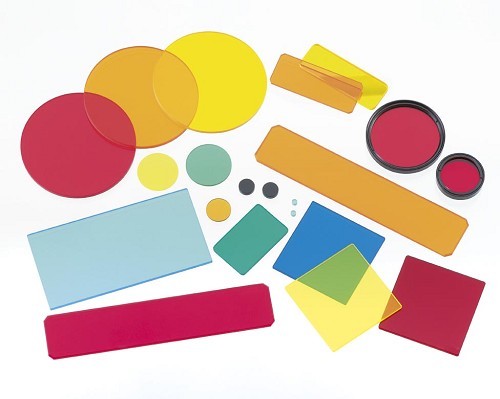

Schott ® Bandpass optical glass filters made from Schott ® colour glass have a specific transmission band surrounded by blocking bands either side that only allow the required section of the spectrum to pass

The Schott® Bandpass filter range includes BG18, BG7, UG11, UG1, UG5

We also have stock of various obsolete Schott materials in raw form including Schott BG24a - Schott BG12 - Schott BG13 - Schott BG14. Where we manufacture standard sizes these will be made available as stock items. All other sizes will be available on request.

Stock Schott filters are available in the sizes below and can be cut to custom sizes if required.  We hold stock of raw Schott materials and can quote for custom sizes and production quantities



MATERIAL:
SCHOTT ® Filter Glass

SURFACE QUALITY:
Ø12.5mm ≤ 3 fringes
DIAMETER TOLERANCE:
+0.0 / -0.2mm

SURFACE QUALITY:
Ø25.0mm ≤ 5 fringes
SQUARE TOLERANCE:
± 0.2mm

SURFACE QUALITY:
Ø50.0mm ≤ 8 fringes
THICKNESS TOLERANCE:
± 0.2mm

PARALLELISM:
≤ 3 arc minutes
SURFACE QUALITY:
60/40

EDGES:
fine ground



CUSTOM SIZES AND THICKNESSES  AVAILABLE ON REQUEST

PLEASE ENQUIRE FOR CUSTOM COATINGS

PART NO. QTY BASKET QUOTE Description Dimensions (MM)Thickness (MM) Unit Price Data
Sheet
fbg18-12schott bg1812.5 dia3.0£9.75pdf
fbg18-25schott bg1825.0 dia3.0£13.25pdf
fbg18-50schott bg1850 x 50 square3.0£26.50pdf
fbg24a-16schott bg24a16.0 dia1.0£30.00pdf
fbg7-12schott bg712.5 dia3.0£9.75pdf
fbg7-25schott bg725.0 dia3.0£13.25pdf
fbg7-50schott bg750 x 50 square3.0£26.50pdf
fug11-12schott ug1112.5 dia3.0£18.00pdf
fug1-12schott ug112.5 dia3.0£9.75pdf
fug11-25schott ug1125.0 dia3.0£34.50pdf
fug11-50schott ug1150 x 50 square3.0£88.00pdf
fug1-25schott ug125.0 dia3.0£13.25pdf
fug1-50schott ug150 x 50 square3.0£45.50pdf
fug5-12schott ug512.5 dia3.0£18.25pdf
fug5-20schott ug520.0 dia1.0£38.85
fug5-25schott ug525.0 dia3.0£35.50pdf
fug5-50schott ug550 x 50 square3.0£92.00pdf
